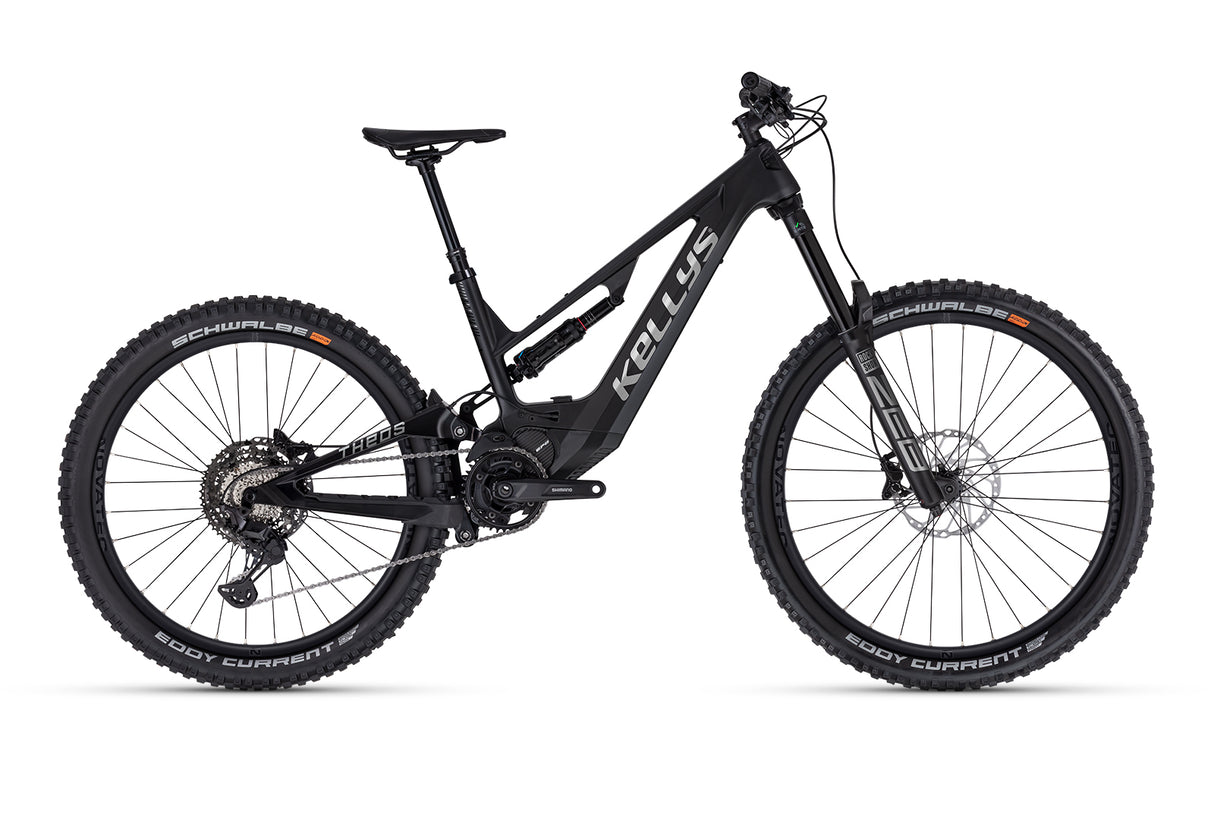

KELLYS Theos F90 SH Space Grey M 29"/27.5" 820Wh

rám
KELLYS THEOS F100 Carbon-Aramid Composite / Designed & manufactured in EUROPE / Think Link® suspension system, 170 mm rear travel, integrated removable battery, 1.8" tapered HT, post mount 203 mm, mullet 29/27.5"+ wheelset, 12x148 mm Boost thru axle

motor
SHIMANO EP801, 85 Nm, 36 V

batéria
KELLYS Re-Charge K1 Li-ion internal removable 820 Wh / capacity 23 Ah, co-developed by Kellys-BMZ

kapacita batérie
820 Wh

radiaca jednotka
SHIMANO SW-EN600-L for assist

cyklopočítač
SHIMANO SC-EN600

vidlica
FOX 38 Float Factory, Kashima Coat (29) Boost, 180 mm, Float Evol / GRIP2 damper / 15QR thru axle

zadný tlmič
ROCK SHOX Super Deluxe Ultimate RC2T, DebonAir+ / Open-Threshold (230x65 mm)

kľuky
SHIMANO Deore XT M8150 Hollowtech / CRE80-12-B (36T) alebo CRE80-12-B (38T) - dĺžka 170 mm

menič
SHIMANO Deore XT Di2 M8150 (direct mount)

radenie
SHIMANO Deore XT Di2 SW-M8150-IR Firebolt (I-Spec EV)

počet prevodov
12

kazetový pastorok
SHIMANO Deore XT CS-M8100-12 (10-51T)

reťaz
SHIMANO CN-M6100

brzdy
SHIMANO Deore XT M8120 Hydraulic Disc

brzdové páky
SHIMANO Deore XT BL-M8100

brzdové kotúče
predný SHIMANO RT-MT800 203mm / zadný RT-EM810 203mm

zapletané kolesá
predné NOVATEC M30A 622x30 / zadné NOVATEC M35A 584x35, Center Lock

predný plášť
SCHWALBE Nobby Nic Evo Super Trail 62-622 (29"x2.40) TLE, ADDIX SpeedGrip, folding

zadný plášť
SCHWALBE Nobby Nic Evo Super Trail 62-584 (27.5"x2.40) TLE, ADDIX SpeedGrip, folding

hlavové zloženie
ACROS 1.8" tapered semi-integrated

pevná os
predná FOX 15QR 15x110 mm front / zadná Mr.control 12x177 mm

predstavec
RACE FACE Aeffect R 35 - diam 28.6 mm / bar bore 35 mm / 0° / dĺžka 50 mm

riadidlá
RACE FACE Aeffect R 35 RiseBar - diam 35 mm / rise 20 mm / šírka 780 mm

rukoväte
KLS Poison

sedlovka
FOX Transfer Factory Remote Telescopic, Kashima Coat - diam 30.9 mm / zdvih 150 mm (M), 175 mm (L)

sedlo
fi’zi:k Taiga, S-alloy rails

veľkosť rámu
M / L
